George Bush Turnpike Engineered Concrete Repair

A major highway in need of rapid concrete repair before rush hour.

Situation

A car fire on the side of the George Bush Turnpike near Exit 161 compromised the integrity of the highway and the concrete perimeter barriers. Both were in immediate need of repairs that only could be completed between rush hours, leaving a repair window from 10 a.m. to 4 p.m.

Installer: Coating Concepts (ARDEX LevelMaster Elite Installer®)

Contractor: Clark Construction

Installer: Texas Concrete Restoration, Inc. (ARDEX CHOICE Contractor™)

Featured Products: Engineered Concrete Repair Systems (ECRS)

• ARDEX TRM™ Transportation Mortar Repair

• ARDEX B 20™ Overhead & Vertical Repair Mortar

• ARDEX BONDING & ANTI-CORROSION AGENT™

Challenge:

• 6-lane, 30.5 mile expressway for the Dallas Fort-Worth Airport and Metroplex
• Fire damage to concrete
• Horizontal and vertical repairs
• Limited working time in non-peak traffic hours
• Fast turnaround required

Solution

ARDEX Sales Professional Matt Eller worked with Texas Concrete Restoration, Inc., to ensure the right materials were selected for the job. ARDEX Engineered Concrete Repair Systems (ECRS) products were selected, because they are easy to use as one component mixtures, they are very strong and durable, and they set very fast.

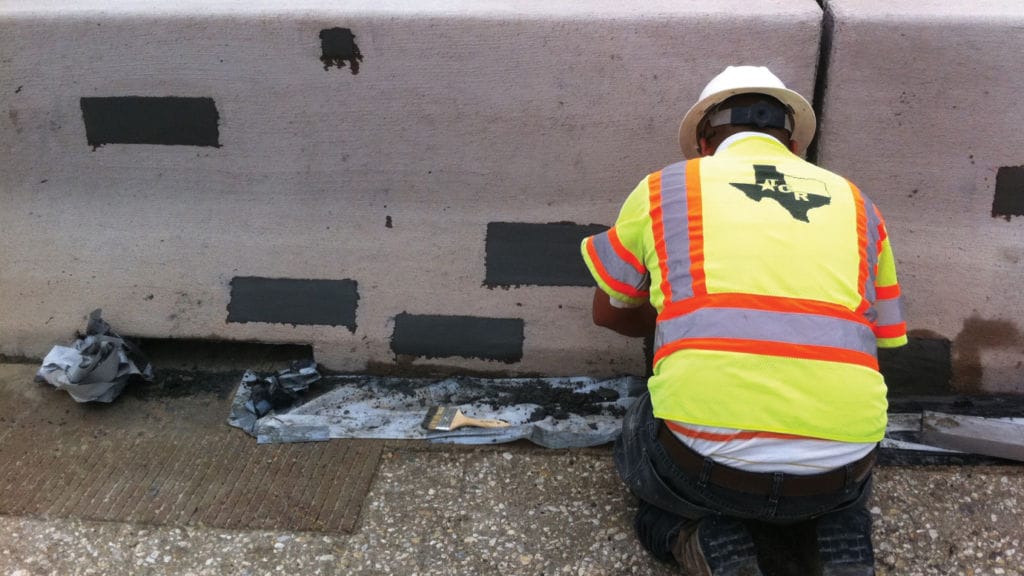

The damaged sections of the vertical concrete barriers were bush hammered and prepared to receive ARDEX B 20TM Overhead & Vertical Repair Mortar, a fast-setting mortar that can be placed from 1/4” to 2” deep in just one lift.

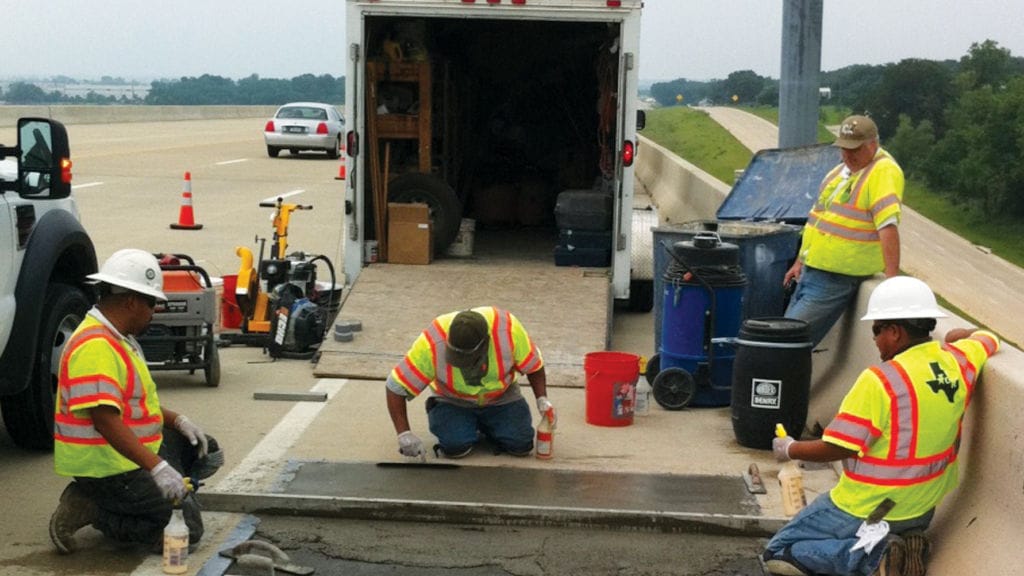

The damaged surface of the highway was scarified to remove concrete and loose materials. Edges were saw cut then the area was cleaned of debris.

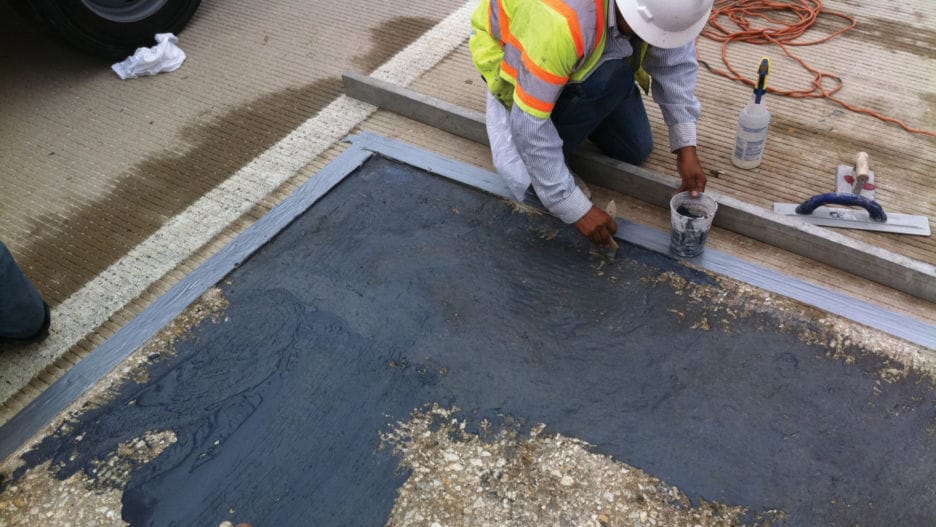

The prepared area, approximately 1/2” deep, was coated with ARDEX BACATM Bonding & Anti-Corrosion Agent to allow for a strong and fast bond of the repair mortar to the existing concrete. ARDEX TRMTM Transportation Repair Mortar was screeded into the prepared section of the highway. ARDEX TRM allows foot traffic in 2 hours and vehicles in just 6 hours.

The ARDEX high-performance products worked perfectly on this hot summer day in Dallas. The repaired area was opened to the evening rush hour traffic on time.

Texas Concrete Restoration, Inc. is a full service concrete restoration and structural repair company and a member of the International Concrete Repair Institute (ICRI). The combination of TCR’s expertise and the high-performance of ARDEX ECRS products made an impossible task possible. The outstanding partnership between the trades and installers resulted in the completion of a massive complex repair in the short window of time.
