Drainage and Pedestal Systems

Products

TerraMaxx® TSL

Pedestal System

  • Pedestals pre-assembled, all one-piece pedestals in 6 sizes
  • Easy leveling and pitch adjustment without tools
  • Integrated spacer and sound dampening pad
Images and Videos

Information TerraMaxx® TSL

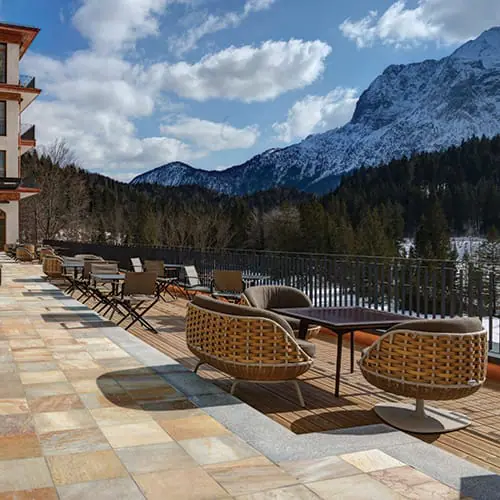

Pre-assembled raised flooring support system for 3/4” (2 cm)+ porcelain tile or pavers. TerraMaxx® TSL Pedestals enable quick and simple installation on balconies, roof terraces and other walk-on exterior surfaces. Rain water runs off through the open joints. Piping, power lines and floor gullies can be concealed in the cavity between the floor covering and the substrate and remain accessible since individual tiles can be lifted or exchanged as needed.



Technical Data TerraMaxx® TSL

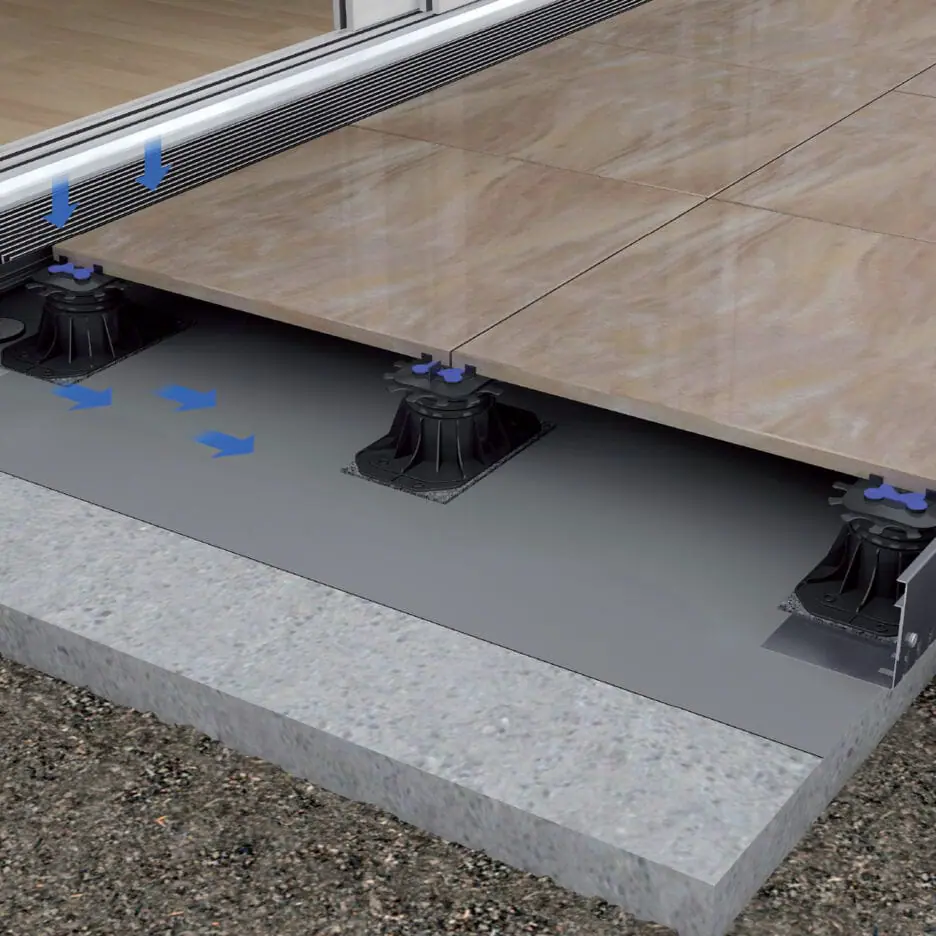

View the TerraMaxx® TSL Pedestal Systems illustration here.

TerraMaxx®
Pedestal Systems
Dimensions
TerraMaxx® TSL-XS 1″ to 1-5/8″ (25/40 mm – no leveling head)
TerraMaxx® TSL-S 1-1/2″ to 1-3/4″ (38/45 mm)
TerraMaxx® TSL-M 1-3/4″ to 2-3/8″ (46/60 mm)
TerraMaxx® TSL-L 2-3/8″ to 3″ (61/75 mm)
TerraMaxx® TSL-XL 3″ to 4-3/4″ (76/120 mm)
TerraMaxx® TSL-2 XL 4-3/4″ to 8-1/8″ (120/208 mm)

Accessories

  • Pedestal Pads 9 / 5-1/2 / 1/4″ (232/142/6 mm)
  • Adapter 3 3/8″ (85 mm – use with 2 XL pedestal only)
  • Spacer attachment 3/16″ (5 mm)
  • Distance holder
  • Edge Support
  • ProFin® KL Profile

Downloads TerraMaxx® TSL
