ARDEX V 1300™
- Levels and smooths up to 58 sq.ft. per bag @ 1/8" over a variety of substrates
- Approved for use over most interior applications including plywood subfloors
- Install floor coverings in 24 hours
ARDEX V 1300™ Self-Leveling Underlayment is a high-performance, pourable or pumpable underlayment designed to level and smooth interior substrates before installing finished flooring. It delivers exceptional flow, strength, and versatility with a variable water ratio for optimal coverage and handling. Suitable for use over concrete, wood, terrazzo, and properly prepared non-porous surfaces, it creates a smooth, durable base for a wide range of floor coverings in dry, interior environments.
Key Features
- Levels and smooths a variety of interior substrates
- Variable water ratio for better flow and increased coverage
- Installs up to 2″ (50.8mm) in most applications without added aggregate

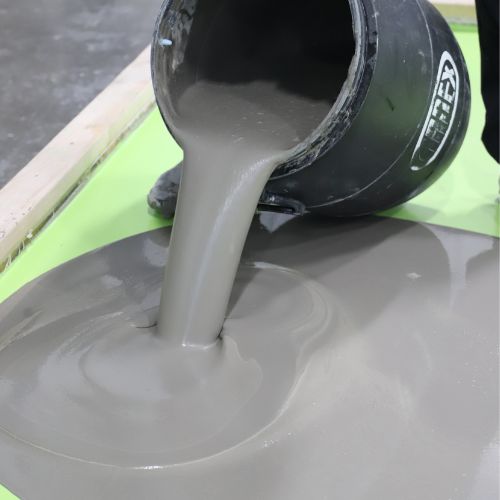

- Pourable or pumpable
- Walkable in 2 to 4 hours
- Install moisture-insensitive tile and stone after 6 hours, most other floor coverings after 24 hours
Installation
Mixing Ratio: 4¾ – 5¼ quarts (4.5 – 4.9 L) of clean water per 50 lb (22.7 kg) bag
Coverage:
- Approx. 58 sq. ft. per bag at 1/8″ (2.7 m² at 3.175 mm).
- Approx. 29 sq. ft. per bag at 1/4″ (2.7m² at 6 mm).
Coverage will vary depending on surface profile, density, and porosity.
Application Thickness:
- Up to 2″ (50.8 mm) neat
- Unlimited with aggregate extension
-
Minimum 1/8″ (3 mm) average thickness
Flow Time: 10 minutes at 70 °F (21 °C)
Working Time: 10 minutes at 70 °F (21 °C)
Walkable: 2 – 4 hours
Install Flooring:
-
Moisture-insensitive tile and stone after 6 hours
-
Most other floor coverings after 24 hours
Performance
Compressive Strength (ASTM C109/mod – air cure only): 5,500 psi (38 MPa; 386 kg/cm²) @ 28 days
Flexural Strength (ASTM C348): 1,000 psi (7 MPa; 70 kg/cm²) @ 28 days
Flow Time: 10 minutes
VOC: 0 g/L
Initial/Final Set: Approx. 30 / 90 minutes (ASTM C191 equivalent)
Installation Temperature: Minimum 50 °F (10 °C) ambient and substrate
pH Tolerance: Compatible with standard concrete substrates per ASTM F3191
Moisture Testing: ASTM F2170 – RH must not exceed 99%
Packaging & Storage

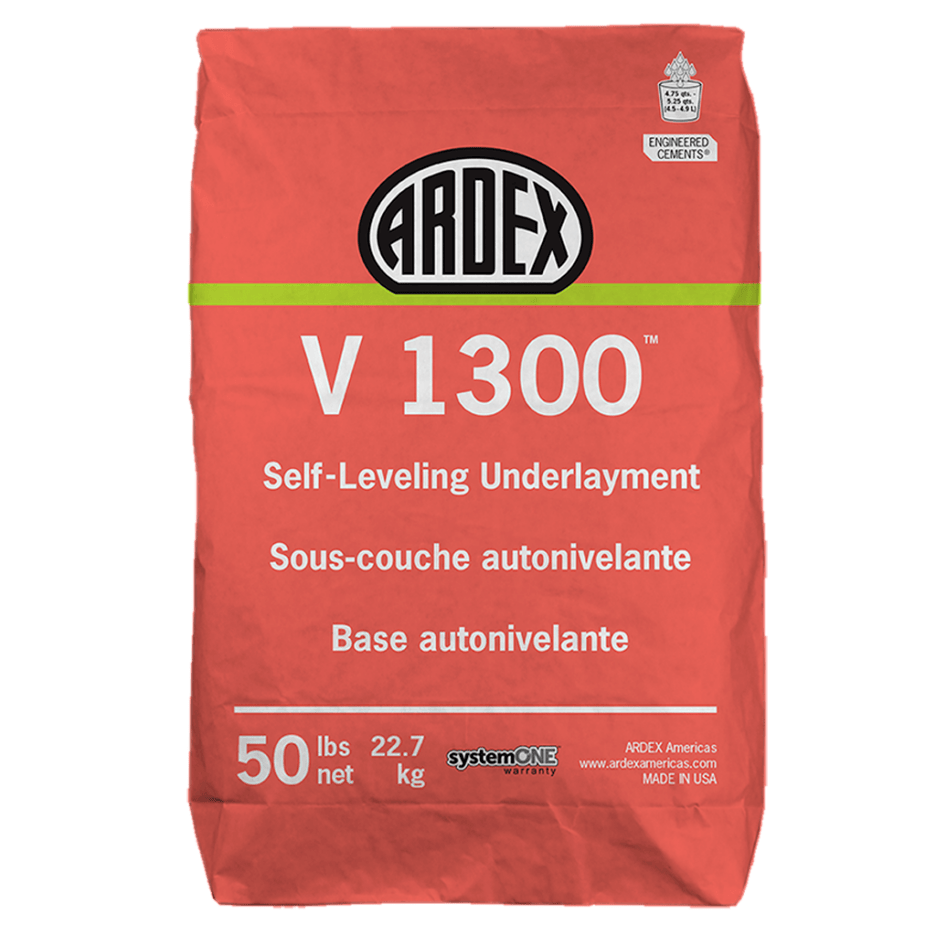

Packaging: 50 lb (22.7 kg) bag
Storage: Store in a cool, dry area. Do not expose bags to sun.
Shelf Life: 12 months if unopened and properly stored
Warranty: ARDEX Standard Limited Warranty applies. Eligible for ARDEX SystemOne™ Warranty when used as part of a qualified system.
For complete product technical information, click on the Downloads tab and open the Technical Data download.
