Drainage and Pedestal Systems

Products

TerraMaxx®

Cement Pedestal Drainage System

  • Passive capillary drainage systems
  • Ideal for 3/4" (2 cm) Porcelain Tile and Pavers
  • Low construction height
Images and Videos

Information TerraMaxx®

A time tested, comprehensive passive capillary drainage system for the installation of 3/4” (2 cm)+ porcelain tile or pavers. Ideal where minimal construction elevation requirements are required.

ARDEX X 32™ MICROTEC® Rapid Setting and Drying Thin to Thick Bed Mortar is used to build cement pedestals directly onto the ARDEX ProDrain® Drainage Mat.

Key Products

Technical Data TerraMaxx®

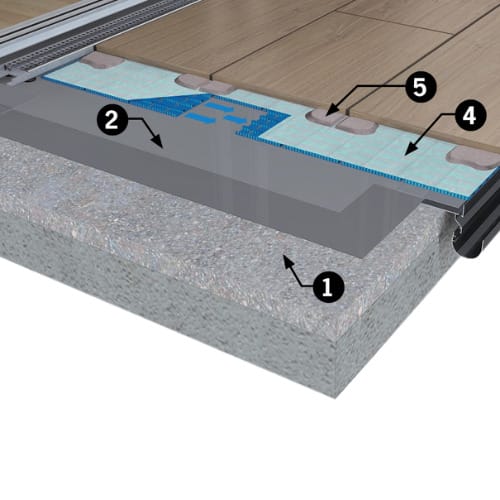

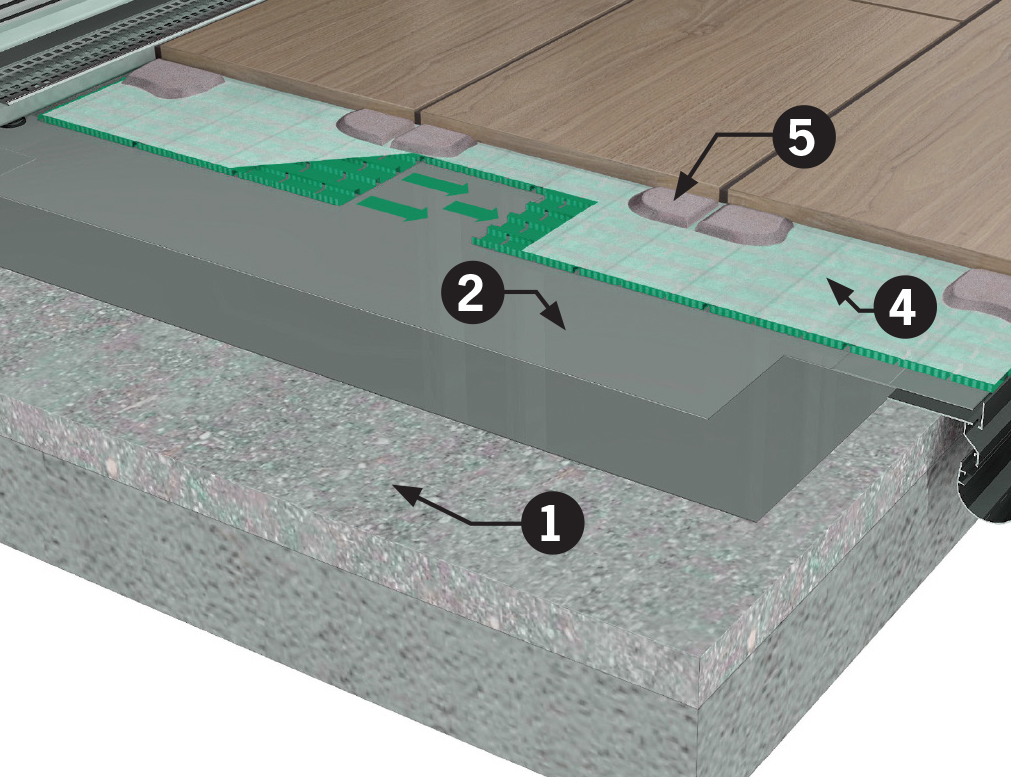

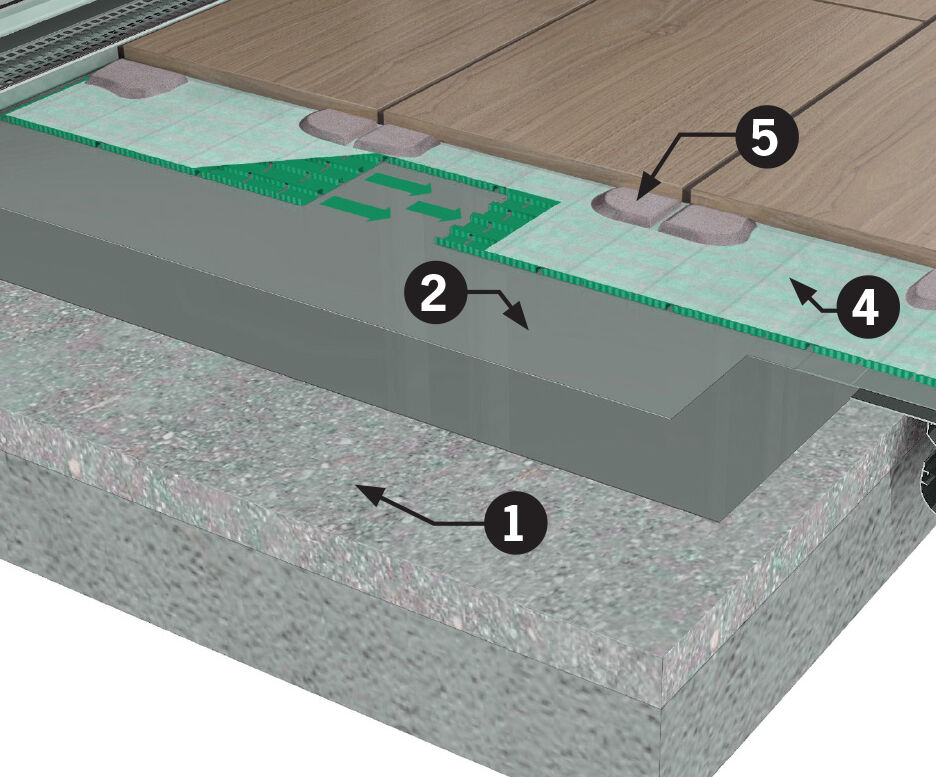

View the TerraMaxx® Cement Pedestal Drainage Systems illustration here.

1. Begin with a sound and solid substrate pre-sloped 1.5 to 2% grade (ARDEX AM 100™ Smoothing and Ramping mortar can be used to create slope)

2. Install ARDEX SK 175™ Waterproofing Membrane and Vapor Retarder

3. Install ARDEX UD 146™ Perimeter Strip along the perimeter of the attached structure

4. ARDEX UE 190-8 ProDrain® Drainage Mat is installed loose laid over the ARDEX SK 175™ Membrane

5. Using ARDEX 32™ MICROTEC® Mortar is used to create cement pedestals (approx. 1/4” thick) placed directly onto the ARDEX ProDrain® Drainage Mat positioned to support the corners of the tile or stone

6. Joints can be sealed with ARDEX SX™ 100% Silicone Sealant or left open



Downloads TerraMaxx®

Contact Us

Questions? Please fill out the form below to contact us with any of your questions or concerns. We look forward to hearing from you, and we’ll be in touch shortly.

"*" indicates required fields

Name*
Address

Information TerraMaxx®

A time tested, comprehensive passive capillary drainage system for the installation of 3/4” (2 cm)+ porcelain tile or pavers. Ideal where minimal construction elevation requirements are required.

ARDEX X 32™ MICROTEC® Rapid Setting and Drying Thin to Thick Bed Mortar is used to build cement pedestals directly onto the ARDEX ProDrain® Drainage Mat.

Key Products

Technical Data TerraMaxx®

View the TerraMaxx® Cement Pedestal Drainage Systems illustration here.

1. Begin with a sound and solid substrate pre-sloped 1.5 to 2% grade (ARDEX AM 100™ Smoothing and Ramping mortar can be used to create slope)

2. Install ARDEX SK 175™ Waterproofing Membrane and Vapor Retarder

3. Install ARDEX UD 146™ Perimeter Strip along the perimeter of the attached structure

4. ARDEX UE 190-8 ProDrain® Drainage Mat is installed loose laid over the ARDEX SK 175™ Membrane

5. Using ARDEX 32™ MICROTEC® Mortar is used to create cement pedestals (approx. 1/4” thick) placed directly onto the ARDEX ProDrain® Drainage Mat positioned to support the corners of the tile or stone

6. Joints can be sealed with ARDEX SX™ 100% Silicone Sealant or left open
